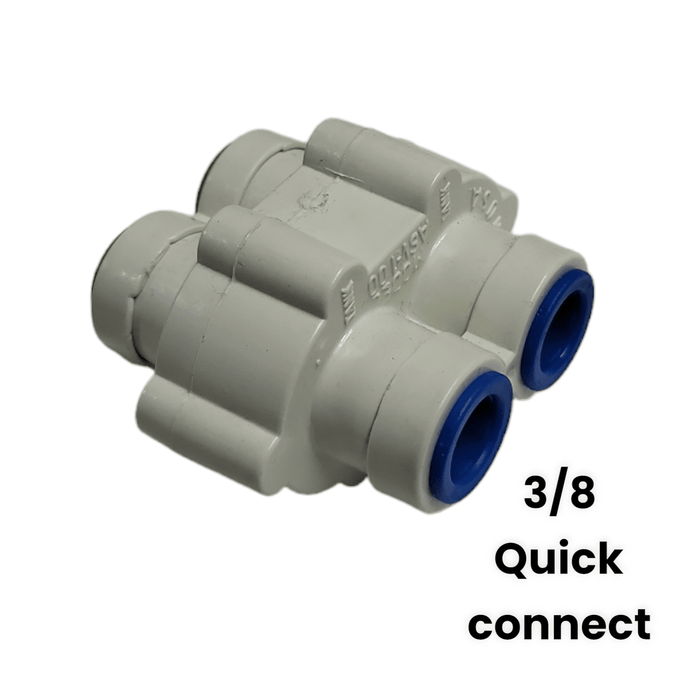

Hydronamic ASV-3000W Automatic Shut-off Valve 4 Way 3/8 QC

by Hydronamic

Part number: ASV-2000W

Only a few left!
$21.99
($21.99 each)
$51.99
$51.99 - $51.99
$51.99
$21.99 - $59.97
$21.99
Save up to 58% 58% Off
choose: 1 Pack
In Stock ships today
The ASV-3000W Or also known as  ASV-100JG Automatic Shutoff Valve is a compact unit in which the the shutoff function is activated when the tank pressure reaches a certain percentage of feedwater pressure.

Features:
  • Mold design includes mounting bracket
  • Easy and time-saving installation
  • ASV-3000W formally known as ASV-100JG
  • Saves thousands of gallons of water
  • 3/8" Quick Connects
Here's how it works: The valve automatically shuts off production when the tank pressure reaches approximately 60% of the incoming line pressure to indicate the tank is full. This device saves thousands of gallons of water! RO Systems without an ASO valve continually send rinse water to the drain even when the tank is full.

Installation:
  1. Insert the tube from the PREFILTER Outlet into the "IN" fitting.
  2. Insert the opposite tube end that feeds the Membrane INLET into the "OUT" fitting.
  3. NOTE: The "IN & OUT" markings are on the screw side of the valve - THIS IS THE HIGH PRESSURE FEED SIDE.
  4. Locate the Product Water outlet from the membrane housing (on the end w/ 2 ports: center is Product water, side port is Rinse/Drain).
  5. Insert the Product water tube from the membrane housing into either "Tank" fitting of the valve (ie Low Pressure side).
  6. Insert the opposite tube end that feeds the Tank into the other "Tank" fitting of the valve.
