VEOLIA Or SUEZ AG Commercial RO Membranes

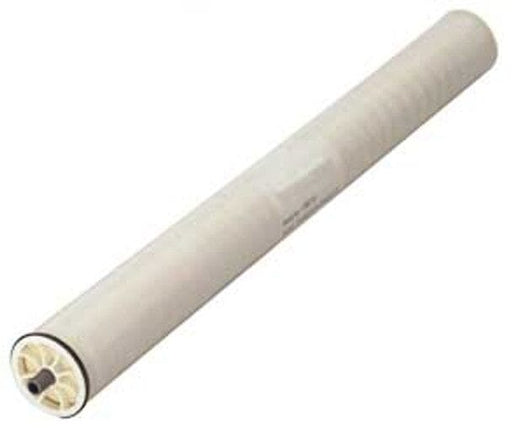

The VEOLIA SUEZ Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired. Specifications: High Flux and Excellent NaCL Rejection Thin-Flim Reverse Osmosis Membrane Element 325 Gallons Per Day Dimensions: 2.5" x 21" Male End Connections Tape Outer Wrap 28 mil Feed Spacers Operating Pressures as low as 200 PSIG Element Membrane diagram (not the encapsulated model)

Element Specifications Model Flow Active Area Avg. Rejection Min. Rejection Part Number AG4040TM 2,400 GPD 85 ft2 99.5% 99% 3032514 3032513 Specifications are based on a 2000 mg/L NaCl solution at 225 psig operating pressure (1551 kPa), 77°F (25°C), 15% recovery, pH 7.5 after 24 hours. Individual flux may vary +25%/ -15%. Operating and Design Parameters Membrane: Thin Film Membrane (TFM®) Typical Operating Pressure: 200 psig Maximum Pressure: 450 psig Maximum Temperature: 122°F Chlorine Tolerance: 1,000 ppm-hrs, dechlorination recommended Optimum Rejection pH: 7.0 -7.5 Operating pH Range: 4.0 - 11.0 Cleaning pH Range: 2.0 - 11.5 Maximum Pressure Drop: 10 psig (69 kPa) per element 50 psig (345 kPa) per vessel Feed NTU: <1 Feed SDI: <3 Typical Operating Flux: 10-20 GFD (15-35) L.H-1.M-2

Model AK 90LE Type Brackish Water Average NaCl rejection percentage 99.50 % Minimum NaCl rejection percentage 99.00 % Average MgSO4l rejection percentage 0.00 % Max Pressure kPa 2757.91 Max Pressure psi 400 Max Temperature °C 48.6 Max Temperature °F 122 Membrane Active Area ft2 90 Membrane Active Area m2 8.3 Flow gpd 2300 Flow m3/day 8.30

The A-Series, family of proprietary thin-film reverse osmosis membrane elements are characterized by high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are selected when high rejection and operating pressures as low as 200 psig (1,379 kPa) are desired. These elements allow moderate energy savings, and are considered a standard in the industry. AG4040TF High Rejection Brackish Water elements feature a tape outer wrap and 28 mil feed spacers. This element is designed with male end connections. Element Specifications Model Flow Active Area Avg. Rejection Min. Rejection Part Number AG4040TM 2,400 GPD 85 ft2 99.5% 99% 3032514 3032513 Specifications are based on a 2000 mg/L NaCl solution at 225 psig operating pressure (1551 kPa), 77°F (25°C), 15% recovery, pH 7.5 after 24 hours. Individual flux may vary +25%/ -15%. Operating and Design Parameters Membrane: Thin Film Membrane (TFM®) Typical Operating Pressure: 200 psig Maximum Pressure: 450 psig Maximum Temperature: 122°F Chlorine Tolerance: 1,000 ppm-hrs, dechlorination recommended Optimum Rejection pH: 7.0 -7.5 Operating pH Range: 4.0 - 11.0 Cleaning pH Range: 2.0 - 11.5 Maximum Pressure Drop: 10 psig (69 kPa) per element 50 psig (345 kPa) per vessel Feed NTU: <1 Feed SDI: <3 Typical Operating Flux: 10-20 GFD (15-35) L.H-1.M-2
