Low pressure grade RO element with extended area for brackish water The RE4040-BLR commercial RO membrane is designed to filter brackish water under low water pressure conditions. Operating under low water pressures compared to other RO membranes will reduce energy costs while maintaining high performance rates. Specifications : Flow Rate: 1,900 Gallons Per Day Dimensions: : 40" X 4" Replace every 24 months Thin Film Membrane (TFM)

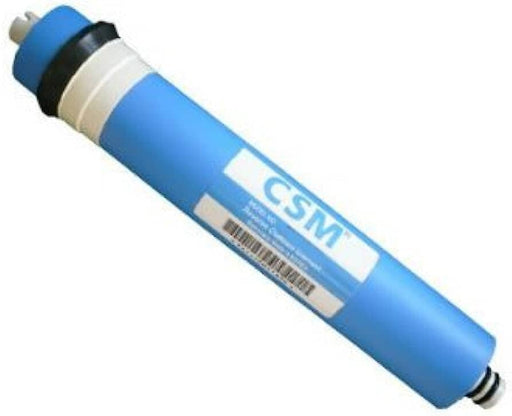

CSM RE2012-LP Reverse Osmosis Membrane 50 GPD 1 CSM Membrane RE-2012-LP 2.0" X 12" LOW PRESSURE MEMBRANE CSM membranes can eliminate substances larger than 0.0001um, such as carcinogens, THMs, heavy metal ions, bacteria and viruses in water. Perfect for tap water applications. This special low pressure membrane provides 50 GPD a low pressure at only 20 PSI. It is ideal for low water pressure applications. The same standard membrane housing can accommodate RO membranes with capacities ranging between 18-100 gallons per day (GPD). Average NaCl Rejection: 90% Permeate Flow at 20 PSI: 60 GPD Specifications are based on 250 mg/L NaCl solution at 20 psi net pressure (1.37 bar), 77°F (25°C), 15% recovery after 24 hours. Individual element flux may vary ± 15%. RANGE : 50 GALLONS PER DAY * Model Number: RE2012-LP * Membrane Type: Polyamide Thin-Film Composite * Maximum Operating Temperature: 113°F (45°C) * Maximum Operating Pressure: 125 psi (0.86MPa) * Maximum Feed Flow Rate: 2.0 gpm (M3/hr) * Ph Range, Continuous Operation: 2.0 ~ 11.0 * Maximum Feed Silt Density Index: <5 * Free Chlorine Tolerance: * Under certain conditions, the presence of free chlorine and other oxidizing agents will cause premature membrane failure. Since oxidation damage is not covered under warranty, we recommend removing residual free chlorine by pretreatment prior to membrane exposure.

CSM RE2012-LPF Reverse Osmosis Membrane150GPD 1 CSM Membrane RE-2012-LPF 2.0" X 12" LOW PRESSURE MEMBRANE CSM membranes can eliminate substances larger than 0.0001um, such as carcinogens, THMs, heavy metal ions, bacteria and viruses in water. Perfect for tap water applications. This special low pressure membrane provides 60 GPD a low pressure at only 20 PSI. It is ideal for low water pressure applications. The same standard membrane housing can accommodate RO membranes with capacities ranging between 18-100 gallons per day (GPD). Average NaCl Rejection: 90% Permeate Flow at 20 PSI: 60 GPD Specifications are based on 250 mg/L NaCl solution at 20 psi net pressure (1.37 bar), 77°F (25°C), 15% recovery after 24 hours. Individual element flux may vary ± 15%. RANGE : 150 GALLONS PER DAY * Model Number: RE2012-LPF * Membrane Type: Polyamide Thin-Film Composite * Maximum Operating Temperature: 113°F (45°C) * Maximum Operating Pressure: 125 psi (0.86MPa) * Maximum Feed Flow Rate: 2.0 gpm (M3/hr) * Ph Range, Continuous Operation: 2.0 ~ 11.0 * Maximum Feed Silt Density Index: <5 * Free Chlorine Tolerance: * Under certain conditions, the presence of free chlorine and other oxidizing agents will cause premature membrane failure. Since oxidation damage is not covered under warranty, we recommend removing residual free chlorine by pretreatment prior to membrane exposure.

Flow Rate: 2,400 Gallons Per Day Dimensions: 40" X 4" Replace every 24 months Thin Film Membrane (TFM) NSF Certified

Low Pressure Grade RO Element for Tap or Brackish The RE4040-BLN commercial RO membrane is designed to filter brackish water under low water pressure conditions. Operating under low water pressures compared to other RO membranes will reduce energy costs while maintaining high performance rates. Specifications Flow Rate: 2,600 Gallons Per Day Dimensions: : 40" X 4" Replace every 24 months Thin Film Membrane (TFM) Product Flow @ 150 PSI
