Pumps & Motors

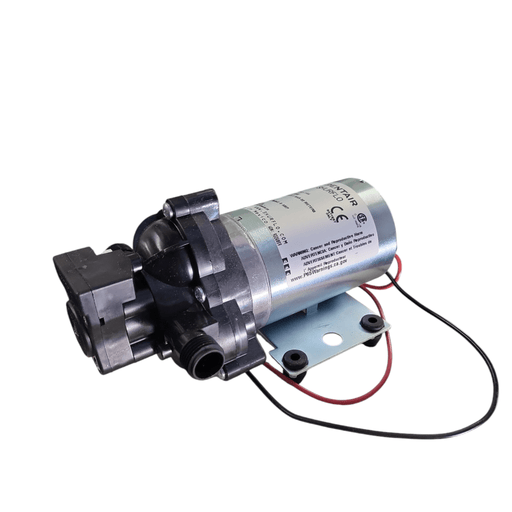

Shurflo 8000-443-236 Delivery Diaphragm Pump 12 VDC with Automatic Switch Motor and 60 PSI Automatic Demand Switch. Shurflo catalog # 8000-443-236 Diaphragm Pump with 12 VDC Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. No cord TYPICAL APPLICATIONS: Diaphragm Pump with Automatic Switch FLOW 1.8 GPM Positive Displacement 3 Chamber Diaphragm Pump Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI). Factory Set at 60 PSI shut off, Turn On 45PSI Bypass: 80 PSI Check Valve: (1-Way Operation) Prevents Reverse Flow Liquid Temperature: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max. Prime: Self-Priming Up To 12 Ft. Vertical

Shurflo 8000-933-250 Delivery Diaphragm Pump 3 Chamber 1.4 GPM 115VAC 60 PSI Bypass (no switch) Shurflo catalog # 8000-933-250 , Diaphragm Pump with 115VAC Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. No cord TYPICAL APPLICATIONS: Ports, UL/CSA Recognized, Typical Application: Soil Extraction, Carpet Cleaning FLOW 1.4 GPM

Shurflo 8005-791-255 Delivery Diaphragm Pump 230V 50psi Demand Switch w/45psi internal bypass Shurflo catalog # 8005-791-255 , Diaphragm Pump with 230Volt AC Motor Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. No cord TYPICAL APPLICATIONS: Delivery Diaphragm Pump FLOW 1.2 GPM

Shurflo 8005-932-260 Delivery Diaphragm Pump 115V 120PSI Bypass Shurflo catalog # 8005-932-260 , Diaphragm Pump with 115 Volt AC Motor and Bypass. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. No cord TYPICAL APPLICATIONS: Delivery Diaphragm Pump BYPASS: 120 PSI FLOW 1.5 GPM

Shurflo 8010-102-210 RO Booster Pump 24V 50GPD TO 100GPD Shurflo catalog # 8010-102-210 , Diaphragm Pump with 24Volt AC Motor and Bypass. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. TYPICAL APPLICATIONS: Booster Pump BYPASS: 80 PSI Use Transformer 60-044-00

Shurflo 8010-101-200 RO Booster Pump 24V 50GPD Shurflo catalog # 8010-101-200 , Diaphragm Pump with 24 Volt AC Motor and Bypass. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. No cord TYPICAL APPLICATIONS: Booster Pump BYPASS: 80 PSI

Product Description ShurFlo 8000 Series RO Pumps are the most widely used pumps for RO. The 8010-101-201 is typically used for reverse osmosis systems with a 50 GPD membrane or less. They are ideal for high pressure / low flow applications with low amp draw. They can be mounted in any position, are compact, and are designed for long trouble-free life. Features : Quiet operation Reliable, long lasting performance Can run dry without damage Flow up to 50 GPD Specifications : 24 VAC 50 GPD 60 PSI bypass 3/8" NPT-Female ports Use transformer 60-044-00

Shurflo 8010-121-200 RO Booster Pump 115V 50GPD/no cord Shurflo catalog # 8010-121-200 , Diaphragm Pump with 115 Volt AC Motor and Bypass. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Female, Discharge Port is 3/8 Inch NPT, Female. No cord TYPICAL APPLICATIONS: Booster Pump BYPASS: 80 PSI

Product Description Polypropylene Pump & Motor Assembly Flojet- Diaphragm Pump Quad, Water Pressure System, VSD, 115V, Automatic Variable Speed for Constant 45PSI Pressure at Up 4.5-5GPM, Santoprene Diaphragm, EPDM Valves, No Accumulator Tank Required, Includes Power Cord and 10/13mm (1/2") Hose Barb Snap-In Port Fittings Estimated Shipping Weight: 9.5 Lbs Each. Manufacturer: Genuine Flojet/ITT, new. More Product Info: 04524-500, 04524500A

Portable System for Dispensing Potable Water from Standard Water Bottles The BW5000 Series Bottled Water System is great portable solution where a standard water supply is unavailable. The Flojet BW5000 can quietly and reliably supply bottled water at 0.6 gpm (2.3 lpm) to espresso machines, coffee makers, tea makers, refrigerators, ice machines, water dispensers, and more. PRODUCT FEATURES Illuminated on/off switch provides clear visibility in dark or hard-to-reach places Long-life motor ensures years of reliable operation Flojet diaphragm pump runs dry without damage, extending pump life Quick-connect port speeds installation and replacement of suction and discharge tubing Quiet operation minimizes noise pollution with noise-dampening rubber feet Thermal overload protection prevents overheating, protecting the pump and control box from damage Flojet BW5000 Series Bottled Water System is ideal where portability is key The Flojet BW5000 Series Bottled Water System is designed to work with coffee/tea makers, refrigerator ice and water dispensers, espresso carts, and portable sinks or any use requiring portable, potable water. Easily connected to most standard three to five gallon (11.4 to 18.9 liter) water bottles, The BW5000 Series Bottled Water System has also been engineered for easy operation and flexible installation. Its compact size supports easy mounting, and the pump automatically shuts off when the water source is depleted and restarts when water is restored. A sealed vacuum keeps water fresh and a built-in check valve prevents back flow. The BW5000 Series Bottled Water System is great for remote locations where water supply is inaccessible. It’s no wonder that coffee shops around the world trust Flojet BW5000 Series Bottled Water Systems to deliver recipe-quality water for more than two million cups of coffee a day.

Technical Specifications Inlet Port: 1/2 inch Voltage AC: 115 Max Temperature: 130 degrees F Max PSI: 45 Max GPM: 3.5 Product Description Polypropylene Pump & Motor Assembly The Flojet 04300545A pump is part of the Flojet 4300 Quad Series. This versatile pump cam be used for car wash services, water treatment, filtering, and more. It is made with chemical resistant materials including a Polypropylene body, an EPDM check valve, and a Santoprene diaphragm. The Flojet 04300545A pump includes 1/2" snap-in hose barb style ports and a 6' power cord. It has a 45 PSI maximum pressure rating and a flow rate of 3.5 GPM. Quiet, smooth, and safe operation! Santoprene diaphragm 6' power cord Snap-in ports for easy installation 130° Fahrenheit maximum fluid temperature Built-in pressure switch automatically starts and stops Can run dry without damage Excellent self-priming capability (up to 8 feet vertical) Powerful magnet motor with low current draw 4 piston design delivers high flow rates Handles water-like and viscous liquids up to 250 cP CE Certified

The Flojet 20381-009 Electric Pump Elbow Quad port x 1/2" (13mm) Hose Barb. Estimated Shipping Weight: 0.35 Lbs Each. Manufacturer: Genuine Flojet, new.

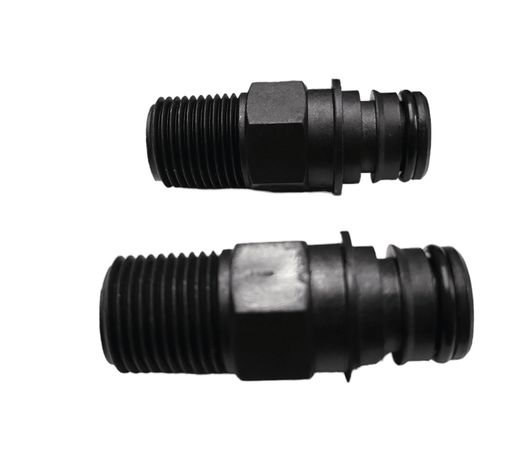

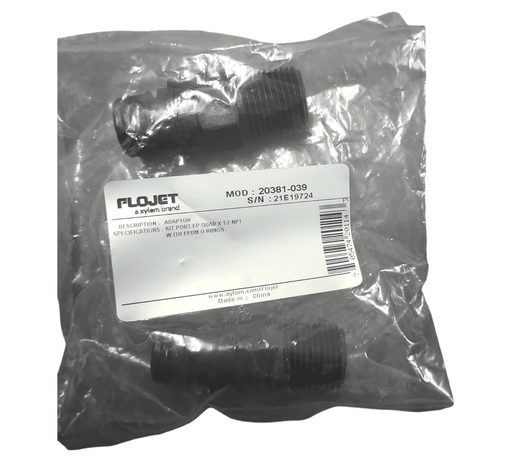

Quad Demand Port Kit The Flojet 20381-039 Electric Pump 1/2" NPT Quad port Fittings Specifications: 1/2" NPT Fitting Genuine OEM Product Two-Pack Estimated Shipping Weight: 0.35 Lbs Each. Manufacturer: Genuine Flojet, new.

The Flojet 20381-002 Electric Pump Quad port x 1/2" (13mm) Hose Barb. Estimated Shipping Weight: 0.35 Lbs Each. Manufacturer: Genuine Flojet, new.

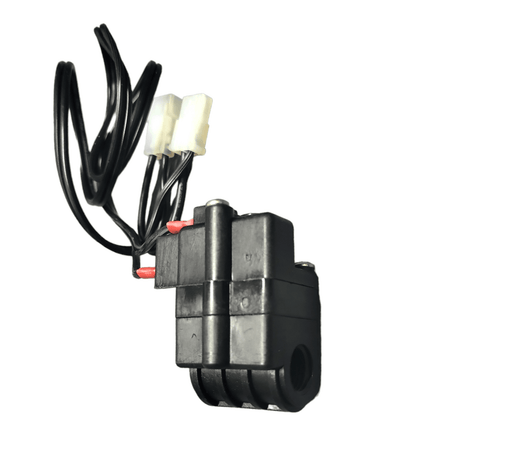

Aquatec Pressure Switch + Quick Connect Electrical Wire Plugs (made in USA) Brand: Aquatec (Genuine Aquatec components) Model: PSW-260 Pressure Setting: It is pre-set at 60 psi cut-off pressure Size: 1/4" Quick Connect This pressure switch is used to control the on/off of the Aquatec booster pump 6800 series and 8800 series. Typical application is installed on a RO reverse osmosis water system. Instruction is included inside package. This pressure switch comes with quick connect wire plugs that connect quickly to Aquatec booster pump and Aquatec transformer. This switch has 1/4" inlet and outlet quick connect fitting. All you need to do is to push in a 1/4" OD tubing into the inlet and outlet all the way in, the fitting will seal itself. To remove the tubing, you just need to push the plastic ring firmly against the fitting then you can pull out the tubing. Pressure Setting: It is pre-set at 60 psi cut-off pressure Operation: When the pressure switch is connected to a Aquatec pump and Aquatec transformer, it will turn on the pump when pressure switch is sensing below 60 psi; then it will turn off the pump when the pressure is sensing 60 psi or above.

The 5513-1E12-J586 Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low-pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. Features: 5-chamber construction 3.5 GPM Closed impervious diaphragm Independent symmetrical valves Highest structural integrity Ten-point clamping Engineered composite plastics Corrosion resistant metal Pressure switch and transducer options Benefits: Self-priming Unparalleled performance, efficiency Whisper quiet at lower flows Minimal pulsations 7 year design life Runs dry without damage Chemically resistant versions Product Details Diaphragm Materials Santoprene Housing Material Polypropylene Inlet Connection 1/2" FPT Liquid Temperature Max 140 °F Motor Rpm 1600 RPM Outlet Connection 1/2" FPT Pressure Switch 60 PSI Pump Max Flow Rate (Gpm) 3.2 Series 5500 Size 1/2" Suction Lift Self-prime up to 10 ft Voltage Type AC Wire Option Wall Plug Connection Type Female (FPT) Origin Made in USA Type Diaphragm Pump Voltage 115VAC Warranty & Certifications Certifications NSF 58 Warranty 16 Months from Date of Manufacture

The LPS Low Pressure Switch electrically shuts off the booster pump if the feed water is interrupted. The LPS is designed to be mounted on the inlet side of the pump. Although the pump will not be damaged if operated without feedwater, pumping air into the membrane for extended periods can damage the module. We strongly recommend this device for applications where feedwater shut off or interruption can occur. The LPS includes a wiring harness (not shown) that interconnects a pump and transformer. Specifications: Material: Wetted parts are FDA Approved or NSF listed Connection: 1/8" Male NPT thread Pressure Switch Closed: 5 PSI or more Pressure Switch Opened: 1- 5, Preset 2.3 PSI Electrical: 125-250 VAC, 15A Max Power: Compatible with 110V or 220V transformers Sustained Operating Pressure: 50 PSI Max Top Terminal: Common Lead Middle Terminal: Normally Open Lead Bottom Terminal: Normally Closed Lead Accessories: Wire Harness 21-028 to connect to pump and transformer

Aquatec Pressure Switch + Quick Connect Electrical Wire Plugs (made in USA) Brand: Aquatec (Genuine Aquatec components) Model: PSW-240 Size : 1/4" Quick Connect This pressure switch is used to control the on/off of the Aquatec booster pump 6800 series and 8800 series. Typical application is installed on a RO reverse osmosis water system. Instruction is included inside package. This pressure switch comes with quick connect wire plugs that connect quickly to Aquatec booster pump and Aquatec transformer. This switch has 1/4" inlet and outlet quick connect fitting. All you need to do is to push in a 1/4" OD tubing into the inlet and outlet all the way in, the fitting will seal itself. To remove the tubing, you just need to push the plastic ring firmly against the fitting then you can pull out the tubing. Pressure Setting: It is pre-set at 40 psi cut-off pressure Operation: When the pressure switch is connected to a Aquatec pump and Aquatec transformer, it will turn on the pump when pressure switch is sensing below 40 psi; then it will turn off the pump when the pressure is sensing 40 psi or above.

Aquatec 8800 Series Transformer 120V/24VAC 2 Amp (USA) This Aquatec transformer powers 8800 Series Aquatec booster pumps. When used with the pump, this transformer is designed to operate at maximum efficiency without overheating or overloading to save thousands of kilowatt hours per year. It is both current and temperature protected. Specs Input Voltage: 115-120 VAC Output Voltage: 24 VAC Primary Input Cord Length: 6 ft Secondary Output Cord Length: 6 ft Overload Protection: Thermal Fuse

US Motors S55CXPNA-7672 (Nidec) 872 - Carbonator Pump Motor - 1 ph, 3/4 hp, 1800 rpm, 115/230 V872 US MOTOR, S055PNA7672012J, REPLACE EM-872, S55CXPNA-7672, PNA-7672, HG714, 5KH37PNA479X, 10A276, S055PNA7672012J Horsepower : 3/4 Voltage : 115/230 Amps : 10.00/4.90 / 9.80/4.90 RPM : 1725/1425 Frequency : 60/50 Hz "C" Dim. : 9.70" Enclosure : Open Drip-Proof Type :Split Phase Diameter :5-5/8" Frame : 48YZ Bearings : Ball Rotation :Reversible Protector :Automatic Service Factor :1.00 Phase :1 Ambient Temp. :40°C Feature(s) : Class 'B' Insulation, Resilient Base, Special Slotted Shaft, Green Ground Lead, Threaded Conduit Hub Weight (lbs.) :25

This Marathon 5KH36MNA445X carbonator pump motor is a single split phase with a two-speed operation. It runs at 1/2 hp, with a maximum speed of 1800 rpm. It operates at 100-120/200-240 VAC, 7.1-7.2/3.4-3.6 Amp. The motor has a 48Y frame with an open drip-proof (ODP) enclosure, rigid base mounting, and a ball bearing system. Weight is 17 pounds.

The Procon 1048-1C is the frame motor adapter for the 56C. Specifications: For use with Series 1500, 1600, 2500 & 2600 Bolts on to 56C

This 1/3 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The 4805 motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application. Features: Auto-reset thermal protection Clamp-on pump mount Voltag: 100-120/200-240V AC single phase Rotation: counterclockwise (can be reversed to clockwise) Procon Stock Number: 828 Marathon Model Number: 5KH32GNB811X Marathon Catalog Number: 4805 Manufactured by Marathon Electric (formerly Manufactured by GE) Formerly known as GE model number 5KH36MNA445X
